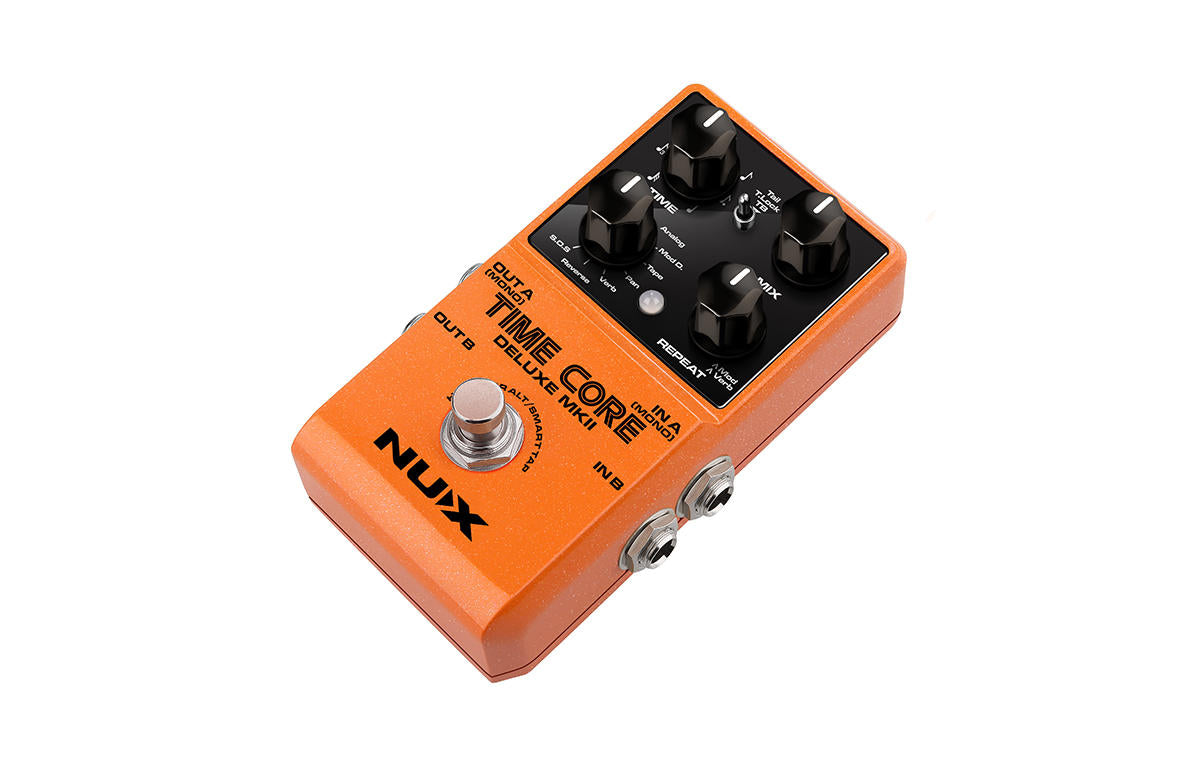

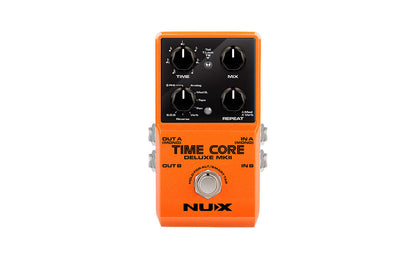

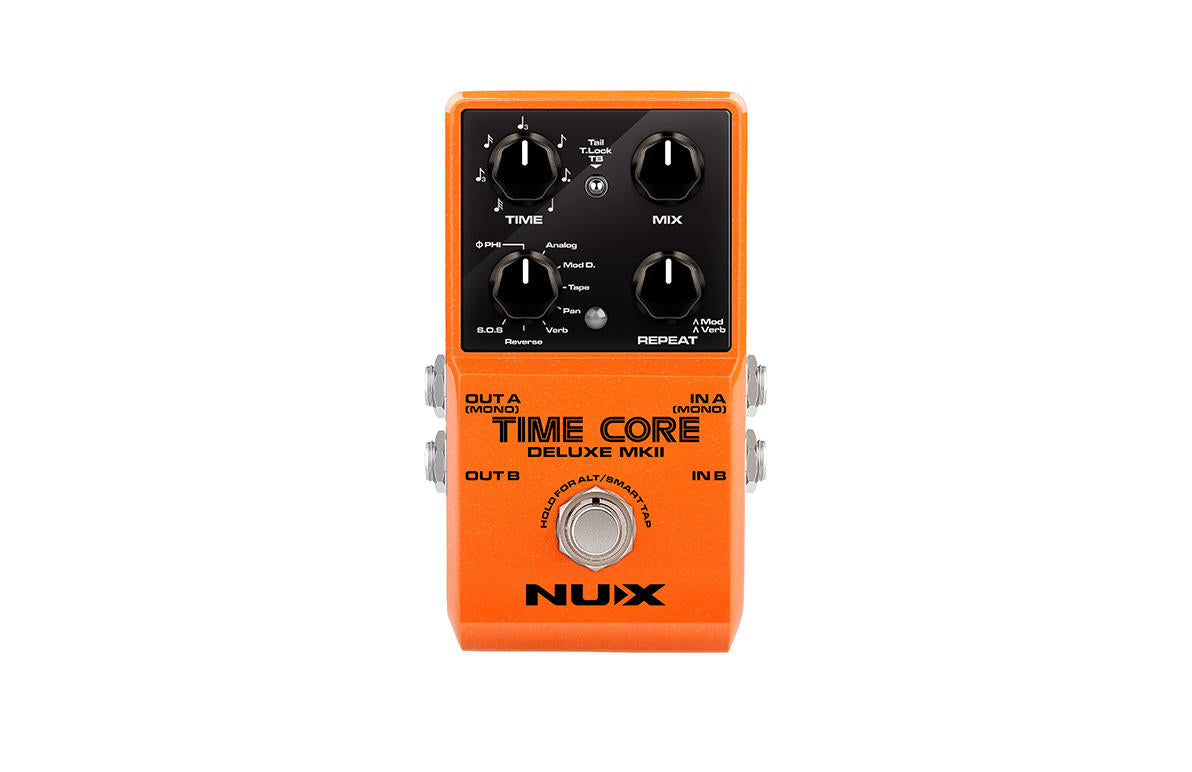

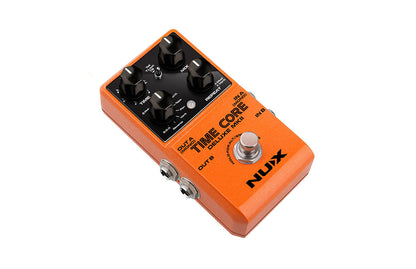

NuX Delay Guitar Effects Pedal With 7 Delay Types

NuX Delay Guitar Effects Pedal With 7 Delay Types

Regular price $133.99 CAD
Regular price Sale price $133.99 CAD
Sale Sold out
Shipping calculated at checkout.

The NUX TIME CORE DELUXE MKII is a delay pedal with 7 different types and a phrase looper; including FPhi Digital Delay, Analog Delay, Modulation Delay, Tape Echo, Pan Delay, Verb Delay, Reverse Delay and Sound On Sound. You can switch the delay type by using the Type rotary switch. Phi Digital Delay is a digital delay with golden ratio 2nd repeat head. It makes your guitar sound more musical. Phi Digital Delay Range: 80ms~1000ms. Analog Delay is based on the timeless BBD (Bucket Brigade Device) delay. It produces a very warm sound with natural treble decay. Analog Delay Range: 40ms~403ms. Modulation Delay is based on the Ibanez DML modulation delay. The Chorus gets lush and rich, not at all what you would expect from an ancient digital pedal. Modulation Delay Range: 20ms~1500ms. Tape Echo is based on the legendary Space Echo machine. We digitally recreated the retro-feel of a real tape and capstan configuration. Tape Echo Range: 55ms~552ms. Pan Delay simply moves a mono signal to different places in the stereo field. Our Pan Delay algorithm changes ordinary panning to “gourmet” panning that involves not only stereo placement but interesting imaging possibilities. Pan Delay Range: 80ms~1000ms. Verb Delay features our Plate Reverb algorithm with Digital Delay to create an ambient atmosphere. Verb Delay Range: 80ms~1000ms. Reverse Delay, a truly classic effect: Record a guitar part on tape. Flip the tape over. Play it back. Reverse Delay Range: 320ms~1240ms.

  • 7 delay types in a compact enclosure.
  • FPhi Digital Delay: Musical digital delay with golden ratio 2nd repeat head. (80ms~1000ms)
  • Analog Delay: Warm sound with natural treble decay. (40ms~403ms)
  • Modulation Delay: Lush and rich chorus with digital delay. (20ms~1500ms)
  • Tape Echo: High-frequency saturation and low-end decay. (55ms~552ms)
  • Pan Delay: Creative natural stereo feeling. (80ms~1000ms)
  • Verb Delay: Plate Reverb algorithm with Digital Delay to create an ambient atmosphere. (80ms~1000ms)
  • Reverse Delay: Inspire guitarists for new ideas. (320ms~1240ms)
  • S.O.S: 40 seconds stereo phrase loop.
  • Sub-division with Smart Tap Tempo. (Maximum: 1580ms)
  • True-bypass or Buffer-bypass(Tails).
  • Supports Stereo.
  • Kill Dry.
  • Low power consumption. (less than 120mA)
  • Analog dry signal for low noise and zero latency.
  • Input Impedance: 1MO
  • Output Impedance: 1kO
  • Dynamic Range: 104 dB
  • DSP Processing: 48KHz / 32-bit
  • A/D D/A Sampling Rate: 48KHz / 24-bit
  • Power: 9V DC(Negative tip, Optional ACD-006A adapter)
  • Current Draw: less than 120mA
  • Dimensions: 122(L) X 72(W) X 47(H)mm
  • Weight: 270g
